YCT-14 Semi automatic Plane Rolling Labeling Machine
Product Application:
Machine description:
①This labeling machine is good for all kinds of specifications of square, flat, curved and irregular products on the surface labeling, such as packaging boxes, cosmetic flat bottles, convex boxes.
②It can achieve plane full coverage labeling, local accurate labeling, vertical multi-label labeling and horizontal multi-label labeling, can adjust the spacing of two labels, widely used in packaging, electronic products, cosmetics, packaging materials industries.
③Optional functions: configuration code printer or ink-jet printer, when labeling, print clear production batch number, production date, effective date and other information, coding and labeling will be carried out simultaneously, improve efficiency.
④The adjustment method is simple and only needs to move the height of the press wheel, the position of the label sensor and the slide sensor. The adjustment process is less than 10 minutes, and the labeling accuracy is high, and the error is difficult to be seen by the naked eye. It is the best choice for products with less mass production.
⑤YCT-14 floor space about 0.50 stere.
⑥Machine Support Customization.
Working principle:
1.Press the switch after the product is already put in, the machine clamps the product.
2.And next the slide moves backwards and next forwards , when the sensor senses that the slide has reached a certain position, the machine sends out the label.
3.Then the wheel presses the label onto the product until one label is all pulled out.
4.Last, release the product and the machine will automatic restore, a labeling process is completed.
This part of the principle for our own research and development, if interested, welcome to consult.
Label specification:
①Applicable labels: sticker label, film, electronic supervision code, bar code.
②Applicable products: Products that are required to be labeled on flat, arc-shaped, round, concave, convex or other surfaces.
③Application industry: Widely used in cosmetics, food, toys, chemical, electronics, medicine and other industries.

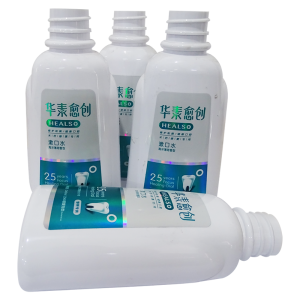

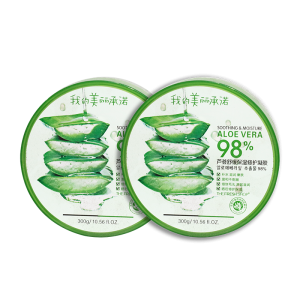

④Application examples: shampoo flat bottle labeling, packaging box labeling, bottle cap, plastic shell labeling, etc.
label production requirements:
1. The gap between the label and the label is 2-3mm;
2. The distance between the label and the edge of the bottom paper is 2mm;
3. The bottom paper of the label is made of glassine, which has good toughness and prevents it from breaking (to avoid cutting the bottom paper);
4. The inner diameter of the core is 76mm, and the outer diameter is less than 280mm, arranged in a single row.
The above label production needs to be combined with your product. For specific requirements, please refer to the results of communication with our engineers!
Main Structure:
| No. | Structure | Function |
| 1 | Label Tray | Place the label roll |
| 2 | Rollers | Wind the label roll |
| 3 | Label Sensor | Detect label |
| 4 | Strengthening Cylinder | Drive the strengthening device |
| 5 | Strengthening Device | Smooth label while labeling and make it stick tight |
| 6 | Product Fixture | Custom-made, fix product from top and bottom while labeling |
| 7 | Conveyor | Driven by traction motor to draw the label |
| 8 | Traction Device | Driven by traction motor to draw the label |
| 9 | Release Paper Recycling | Recycle the release paper |
| 10 | Emergency Stop | Stop the machine if it runs wrong |
| 11 | Electric Box | Place electronic configurations |
| 12 | Touch Screen | Operation and setting parameters |
| 13 | Air Circuit Filter | Filter water and impurities |
Technical parameters:
| Parameter | Date |
| Label Specification | Adhesive sticker,transparent or opaque |
| Labeling Tolerance | ±0.5mm |
| Capacity(pcs/min) | 15~30 |
| Suit bottle size(mm) | L:20~200 W:20~150 H:0.2~120;can be customized |
| Suit label size(mm) | L:15-200;W(H):15-130 |
| Machine Size(L*W*H) | 960*560*930(mm) |
| Pack Size(L*W*H) | 1180*630*980(mm) |
| Voltage | 220V/50(60)HZ; Can be customized |
| Power | 660W |
| N.W(KG) | 45.0kg |
| G.W(KG) | 67.5kg |
| Label Roll | ID:Ø76mm; OD:≤240mm |
| Air Supply | 0.4~0.6Mpa |
Features:
1 ) Control System: Japan Panasonic control system , with high stability and extremely low failure rate.
2 ) Operation System: Touch screen , directly visual interface easy operation.Chinese and English available . Easily to adjust all electrical parameters and have counting function , which is helpful for production management.
3) Detection System: German LEUZE/Italian Datalogic label sensor and Japanese Panasonic product sensor , which are sensitive to label and product , thus ensure high accuracy and stable labeling performance . Greatly saves labor .
4) Alarm Function : The machine will give an alarm when problem occur , such as label spill , label broken , or other malfunctions .
5) Machine Material : The machine and spare parts all use material stainless steel and anodized senior aluminum alloy , with high corrosion resistance and never rust .
6) Equip with a voltage transformer to adapt to local voltage.
